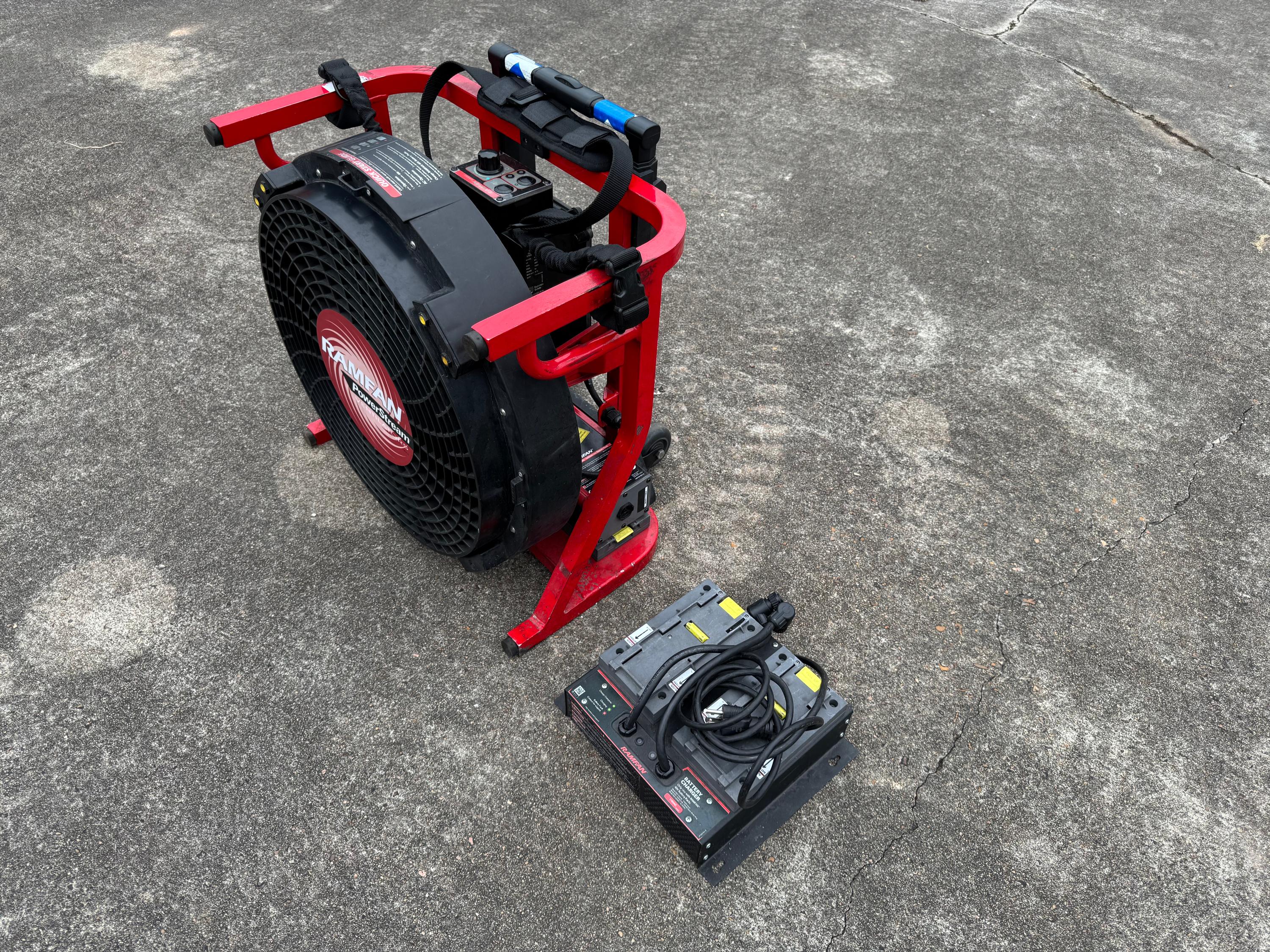

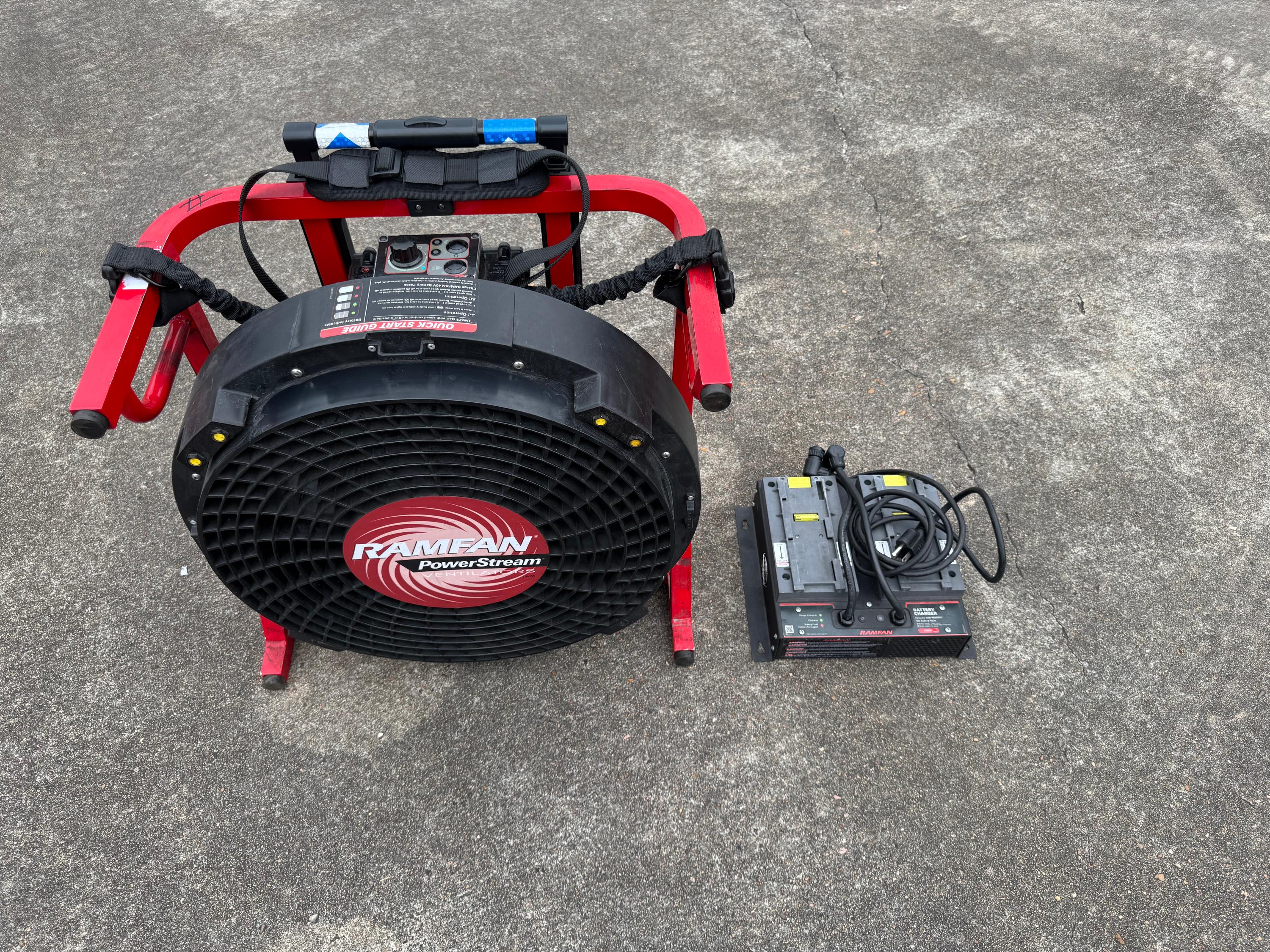

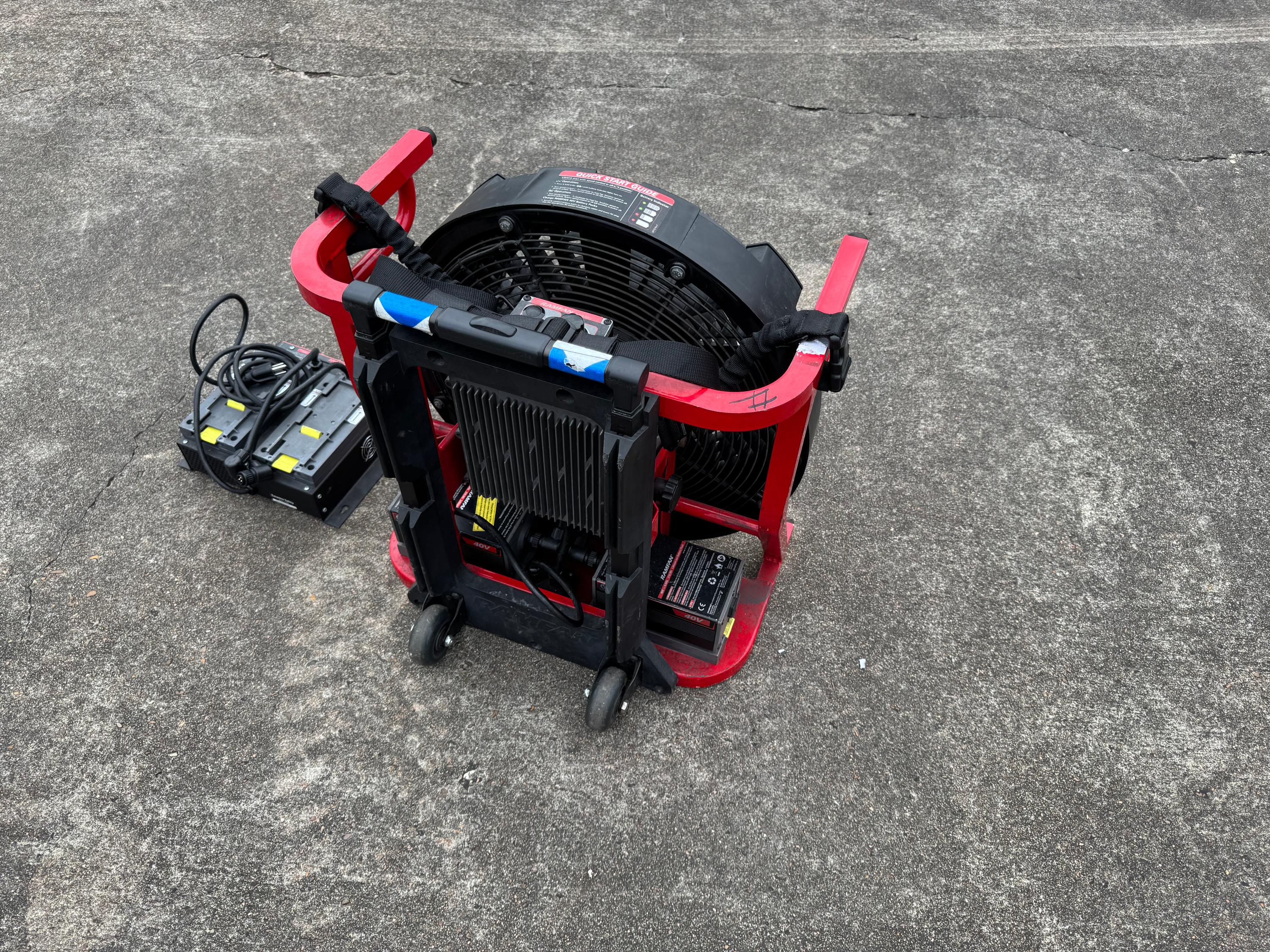

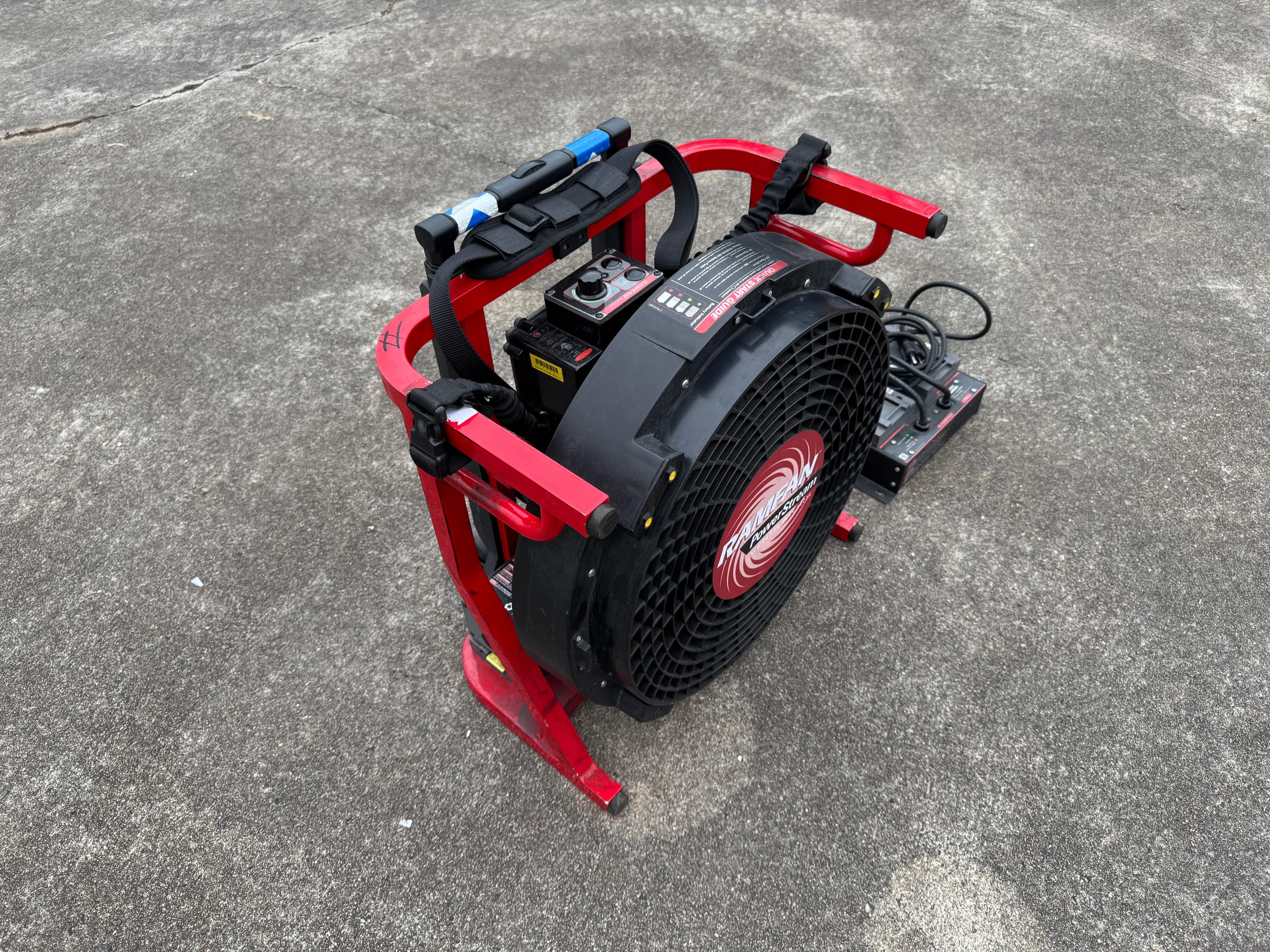

Name: RAMFAN EX50Li Battery Powered Ventilator (8 available)
Brand: RamFan
SKU: 356edc4e-8a34-4e79-a0c8-4bc9f55d3290
Price: 1500 USD
Availability: InStock

The RAMFAN EX50Li is the only battery-powered PPV fan available with hot-swappable IP66 rated battery packs, to protect against the inevitable sweep of the fire hose.


The ability to have extra battery packs and an onboard charger removes the limitations of other traditional fans, leading to a very quick and efficient usage of the fan at the fire ground.


40V Lithium-Ion Battery Packs. PPV battery fans require batteries with a greater density of energy storage. The battery management system (BMS) is the central element for monitoring and controlling energy storage systems.

The 432 Wh Lithium-Ion battery system allows for cordless operation and it was designed specifically for the high draw and sustained run-time applications demanded of PPV fans.

Specifications
NSN (Nato Stock Number): NSN (Nato Stock Number)
Motor: NSN (Nato Stock Number)
Runtime@Max Speed:
DC: 90 minutes (four battery packs)
DC: 45 minutes (two battery packs)
DC: 23 minutes (one battery pack)
AC: Unlimited
Battery System: 40v Lithium-ion, 432Wh, 12Ah
IP Rating (Motor/Battery System/Contoller): IP66 / IP66 / IP66
Dimensions: 22” x 21” x 12” | 56 x 53 x 30 cm
Weight:
with two batteries: 54 Ibs / 25 kg
with one battery: 50 lbs / 23 kg
without batteries: 45 lbs / 20 kg
Approvals CE AMCA
AMCA Verified Airflow
AC Power Supply: 9,635 cfm (16,370 m3/hr)
DC Power Supply: 10,120 cfm (17,194 m3/hr)

Features:
Lightweight, Aircraft Grade Aluminum Alloy Frame
Integrated LED Flood Lights illuminate the entry point of a structure during night operations
Wide range tilt adjustment from -7° to +34° with Negative Tilt Bracket
Brushless DC Motor
Next-generation Intellisense™ E3 Controller
Swappable 40V Li-Ion Battery Packs can be charged in 4 hrs
IP66 Water Resistance protects from powerful water jets
Onboard Charger
Equipped with 2nd Generation PowerStream® Air Straighteners
Easy Start-Up … 1, 2, GO! controls
Large control knobs
PowerSense™ Speed Management
2x Battery >> MAX power with ECO mode
AC input >> MAX power with ECO mode
1x Battery >> ECO mode to limit discharge current per cell
Redundant BMS for maximum reliability
Redundant battery protections, on battery packs and fan controller, maximize the reliability of your critical tools.
On-tool Charging: Charge batteries, simultaneously, at 1.5A per pack, without removing them from the fan.
PRO//connect compatibility: Plug into your fan for real-time diagnostics and troubleshooting data.
